CG-P HIGH-END MULTI-COMPONENT INJECTION MOLDING MACHINE
The YIZUMI CG-P Series is a high-performance line of multi-component injection molding machinesdesigned for stability, precision, and customization. With clamping forces ranging from 160T to 800T, these machines are ideal for complex applications such as automotive components, consumer electronics, and medical devices. The CG-P Series integrates advanced turntable technology, modular injection units (L/V-type), and intelligent control systems to deliver exceptional repeatability (±0.3mm) and energy efficiency.
Technical Highlights
Clamping Unit
BFC (Balanced Force Clamping) Technology: Ensures uniform mold pressure distribution with platen parallelism <0.05mm under load.
MLT (Magnetically Levitated Turntable): Enhances durability and reduces wear, supporting turntable capacities up to 5,000 kg (800T models).
DCPC (Digital Closed-Loop Positioning Control): Achieves turntable positioning accuracy within ±0.3mm.
Smart Mold-Open Deceleration: Optimizes robot-assisted insert loading/unloading with precise positioning.
Tie Bar Free (TBF) Design: Eliminates contamination for clean production environments.
Injection Unit
Modular L/V-Type Units:
L-Type: Horizontal configuration for core-pull, hot runner, and sequential valve integration.
V-Type: Vertical design for multi-color molding (e.g., dual-component laptop casings).
High Repeatability: ±0.5% shot weight consistency via low-inertia moving parts and PID temperature control (±0.4°C).
Non-Stick Screw Design: Prevents material degradation (e.g., yellowing) for TPE, TPU, and LSRapplications.
Servo Direct Control (SDC): Independent control of injection/plasticizing for rapid response (1ms scan time).
Controle and Automation

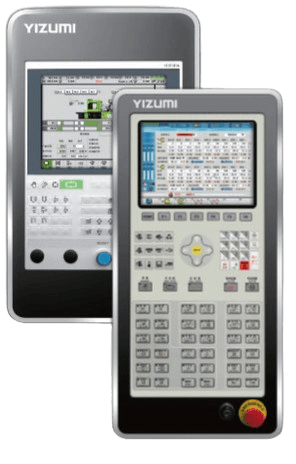

KEBA Industrial Controller: Features a 15" HD touchscreen, OPC-UA interface, and real-time SPC monitoring.
Multi-CPU Synchronization: Coordinates up to 4 injection units simultaneously for complex molding.
IoT Integration: Supports MES, robots, and hot runners via Euromap 12/67 interfaces.
Energy Monitoring: Optional smart meters track consumption for sustainable production.
