CG-P Series High-end Multi-component Injection MoldingMachine
The YIZUMI C Series multi-component injection molding machine is designed for enhanced quality of life and individualization. Focused on stability and customization, the Custom Series aims to bring vibrancy and diversity to everyday life. Clamping forces range from 1,600 to 8,000 kN.
Machine Introduction Video
Clamping Unit
Balanced force clamping technology
- The BFC technology delivers high platen rigidity, long mold life.
- Easily-adjustable processes and minimized possible flashes and better ensures molding accuracy and stability.
Digital closed-loop positioning control technology
Magnetically levitated turntable technology
Injection Unit
Modular injection unit combination
Customization is available through the flexible combination of injection units according to different processes requirements and flexible software functions.
Modular injection unit combination
High-rigidity low-inertia injection unit
L/V Independent Injection Unit

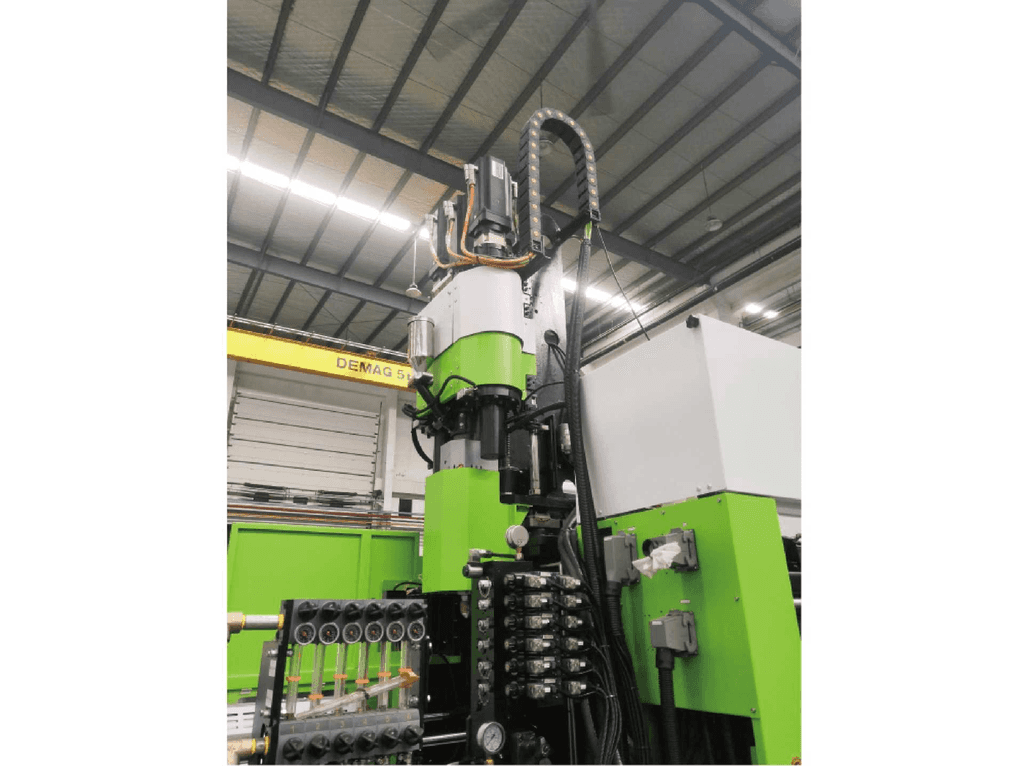

Independent V injection unit
- Independent V-type injection unit adopts independent modular design to meet the combination needs of injection molding machines of different tonnages. - With YIZUMI's optimization design, the removal of the injection unit provides more mold height for convenient installation and disassembly of molds.
Independent L injection unit

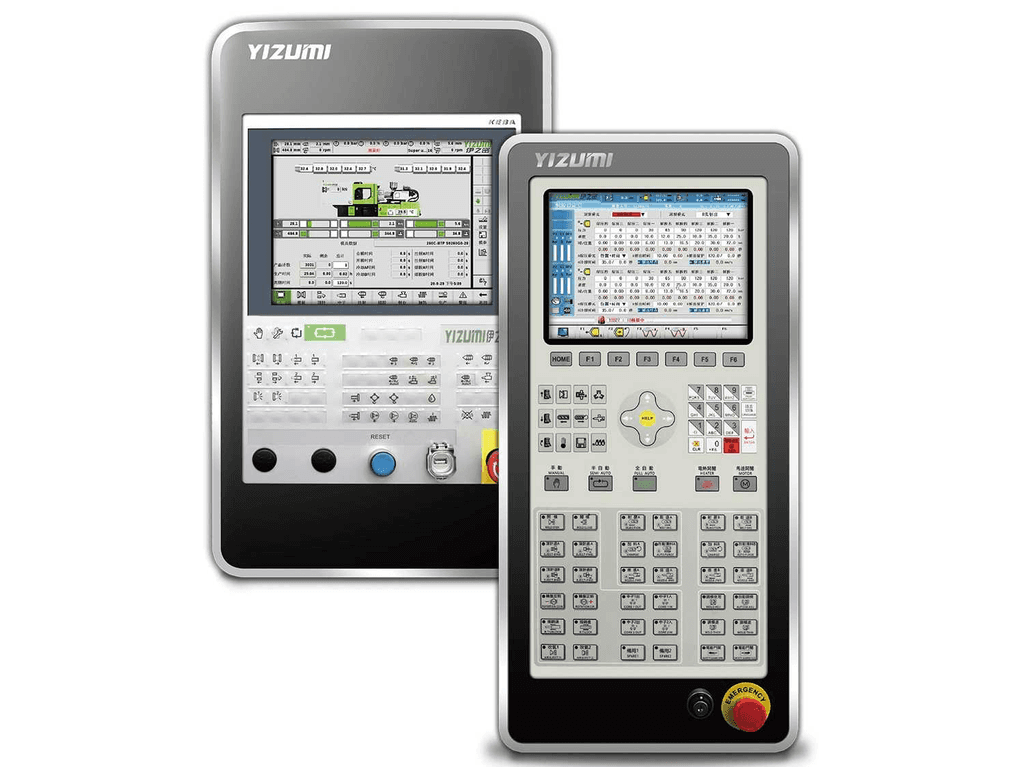

Control System
The powerful and responsive industrial controller for multi-component injection molding machine can accurately and synchronously control several injection units, and exchange data with turntable by synchronous communication in real time to achieve turntable accurate positioning.
- Remote on-line monitoring of production
- Unlimited parameter storage through USB
- Statistical process control (SPC) for multiple injection units
- Setup and tracking of key movement curves
- Early deceleration and positioning control of movements
- Up to 128-zone built-in hot runner control extension
- Integrated control of auxiliary equipment
