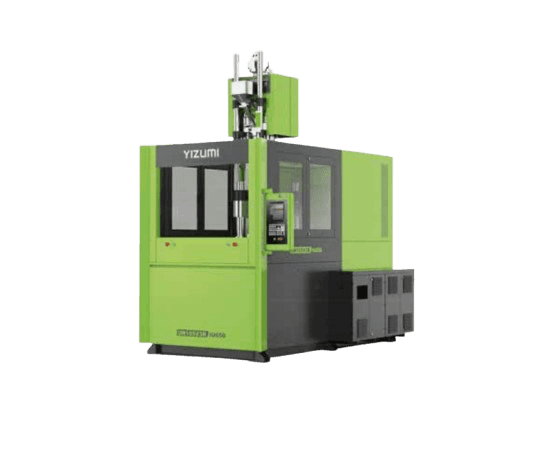

V3 Series Vertical Machine
The YIZUMI VM Series comprises two advanced vertical injection molding machines: the V3 and V4. Designed for precision and efficiency, these machines are ideal for molding plastic products with inserts, multi-purpose processes, and high-output production. The V3 Series features a high-precision turntable and synchronous ejection. Both series incorporate energy-saving servo technology, robust hydraulic systems, and the KEBA control system for precise automation.
Technical Highlights
Injection Unit
Optimized Plasticizing Screw: Increases plasticizing efficiency by 10–30% and improves material homogeneity.
Proportional Back Pressure Control: Enhances injection stability via industrial controller adjustments.
Vertical Injection: Ensures reliable performance with a servo-driven system for high-speed, high-pressure molding.
Multiple Configurations: Four material barrel assemblies for versatility (e.g., screw diameters: 22–68 mm; shot volumes: 44–962 cm³).
Clamping Unit
Direct Clamping + High-Rigidity Piston: Reduces deflection and ensures uniform mold pressure (clamping force: 600–3,000 kN).
Turntable Design (V3): Dual-station rotary table boosts productivity; optional servo-driven turntable for precision.
Low-Pressure Mold Protection: Safeguards molds during closing.
Hydraulic System
3rd-Gen Servo Technology: Cuts energy use by 50% and noise by 20% vs. predecessors. Features high-response pumps and overload capacity.
Oil Level Detection: Prevents hydraulic instability with automatic alarms.
